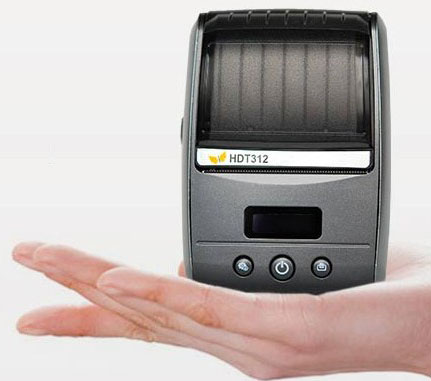

便携式票据打印机 portable printer

　　HDT312为芝柯最新设计的便携式票据打印机。她的设计融入了多种成熟的最新技术：OLED显示技术、智能省电及功耗控制技术、变速打印技术、打印黑度数字调节技术、双黑标检测技术等等。这些技术的使用以用户体验作为出发点，真正实现了功能强大而且易于使用

　　HDT312 is a most advanced portable receipt printer with high resolution of OLED displays, intelligent power controlling and saving technology, adjustable printing quality and speed , black label detection , All these make the printer easy to operate and convenient to maintain .

• 　　现场交警执法文书打印 traffic police spot law enforcement receipt printing
• 　　现场行政执法文书打印 Administration spot law enforcement receipt printing
• 　　银行现金割单打印 Bank cash receipt printing
• 　　现场车辆定损单打印 Vehicles insurance losses receipt printing
• 　　高速高清打印 High speed and resolution printing

　　最高速度可达60mm/s，同时采用了智能变速方式，以及打印质量可调技术，适用于各种不同打印纸张的高速高清打印。

　　Maxi printing speed 60mm/s, intelligent adjustable printing quality and speed , suitable for different printing paper

　　OLED 显示屏显示 OLED display

　　先进低功耗、高亮度OLED显示屏，文字与图标相结合的状态指示，即时反馈打印机状态。

　　Advanced power saving technology with high resolution of OLED display , character with symbol to indicate the printer status and meanwhile feedback .

　　双黑标检测设计 Double black label detection design

　　独有的双黑标检测技术，让预印刷多联票据套打轻松实现。

　　Special double black label detection make printing of pre- printing multi receipts easy .

　　强化智能省电技术 intelligent power saving technology

　　采用更优化的智能省电及功耗控制技术，自动休眠，自动唤醒，每次充电可打印100-130米。

　　Intelligent power controlling and saving technology , automatic sleep and wakeup , could print 100-130m after charge

　　一键开盖 one button open

　　移植于高端台式票据打印机的一键开盖技术，既增强了打印机的抗摔性能，又方便使用。

　　One button open make easy to use and maintain .

　　Print performance打印参数

打印方式Print Method	行式热敏Thermal line
纸卷宽度Paper Width	58mm
纸卷直径Paper Roll diameter	≤40mm
打印行宽Print Width	48mm（16汉字/行 32英文字符/行标准24点阵高字体） 48mm16 Chinese chars/Line; 32 English chars/Line(Font Height: 24dots)
内置字库Code page	ASCII(8X16,12X24)、GBK(16X16,24X24)、BIG5(16X16,24X24)
打印速度Print speed(max)	60mm/s(max)
分辨率Printing Density	203dpi（8 dots/mm）
打印内容Print contents	ASCII character, Chinese character,User Defined ,symbol ,logo curve Barcode(one-dimension):UPC-A、UPC-E、CODE39、EAN-13、EAN-8、CODABAR、CODE128、CODE93.ITF Barcode(Binary):QR Code

外观尺寸Size（LxWxH）	113mmx82mmx48mm
重量Weight	246g(not including paper roll)

黑标定位Black label detection	双黑标定位检测Enable
状态指示Status Display	OLED显示屏缺纸开盖缺电休眠 OLED display：communication、print、paper run out、lid open、battery low 、sleep
功耗控制Power saving	休眠功能/自动唤醒 automatic sleep ,automatic wakeup

电源Power supply	1300mAh/7.4V 可充电锂聚合物电池 1300mAh/7.4V chargeable LI battery
充电方式Charge way	带机充电Standby charge
充电时间Charge time	约2.5H
异常检测Detect function	缺纸检测、电量不足检测、开盖检测Paper run out ,battery low ,inconventionality
一次充电打印长度Printing length	12.5%打印密度下可打印100-130m 100-130m after charge( 12.5% printing density )

有线接口 Wire communication	RS232C
无线接口 Wireless communication	红外IrDA	Ircomm / VIR / VIR645 / SIR
	蓝牙Bluetooth	Bluetooth2.0 Class2 SPP
